【FUNCTION】 This ECCPP Double Flaring Tool Kit is used when flaring single or double flare in a variety of material copper, aluminum, brass, magnesium, and soft steel brake line tubing. You can use this kit on any new or existing line in the vehicles (up to 45 degrees).

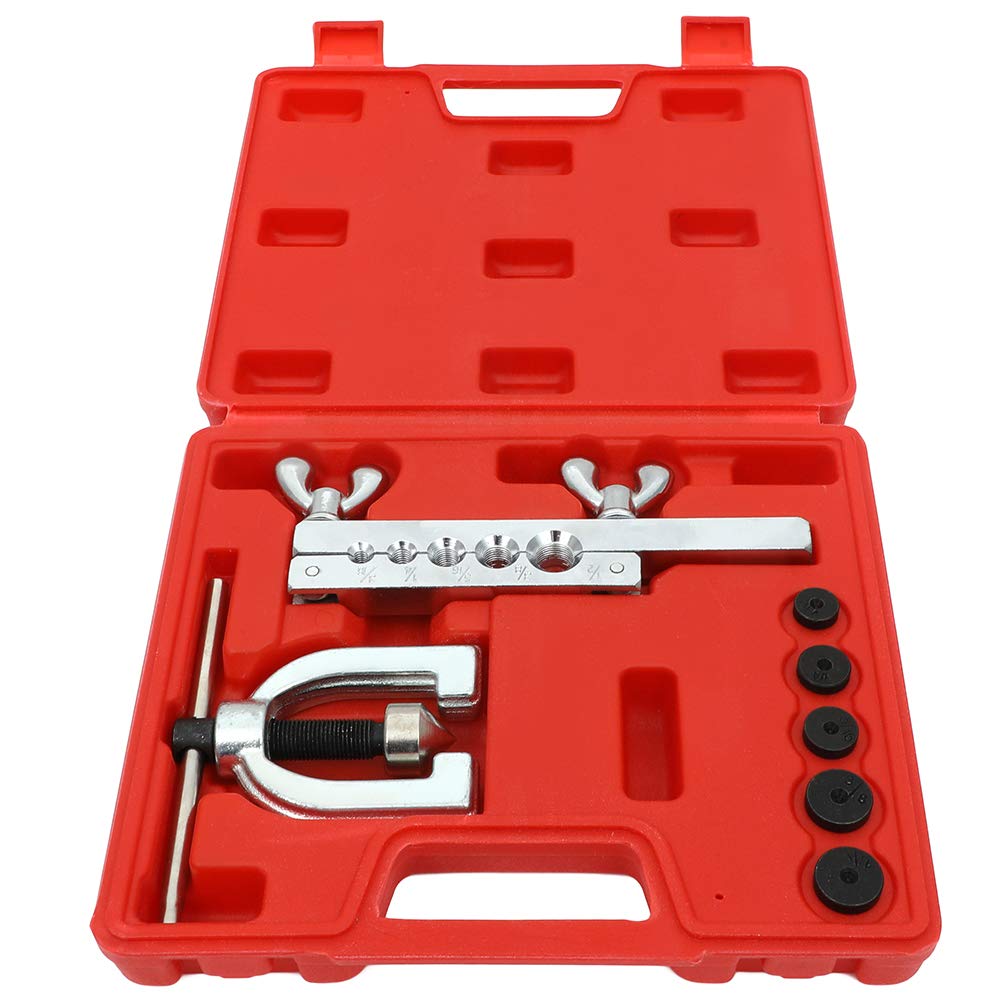

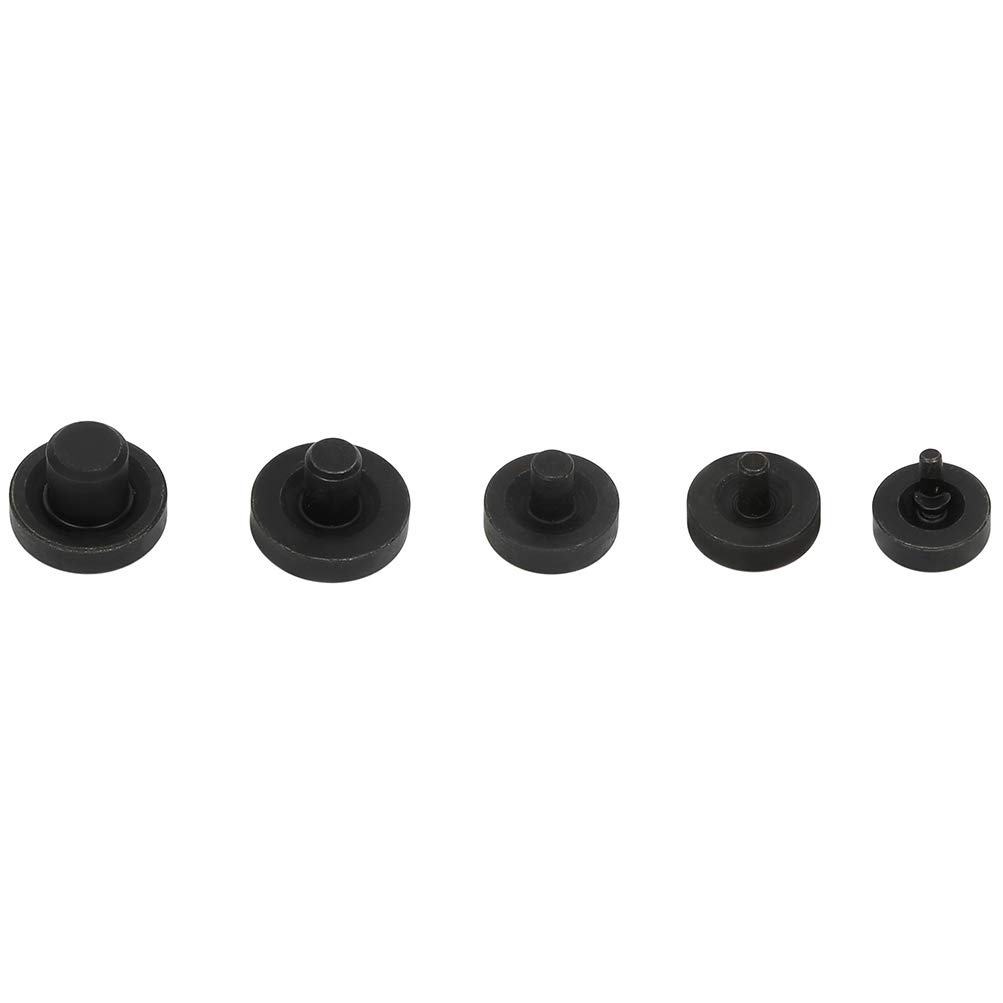

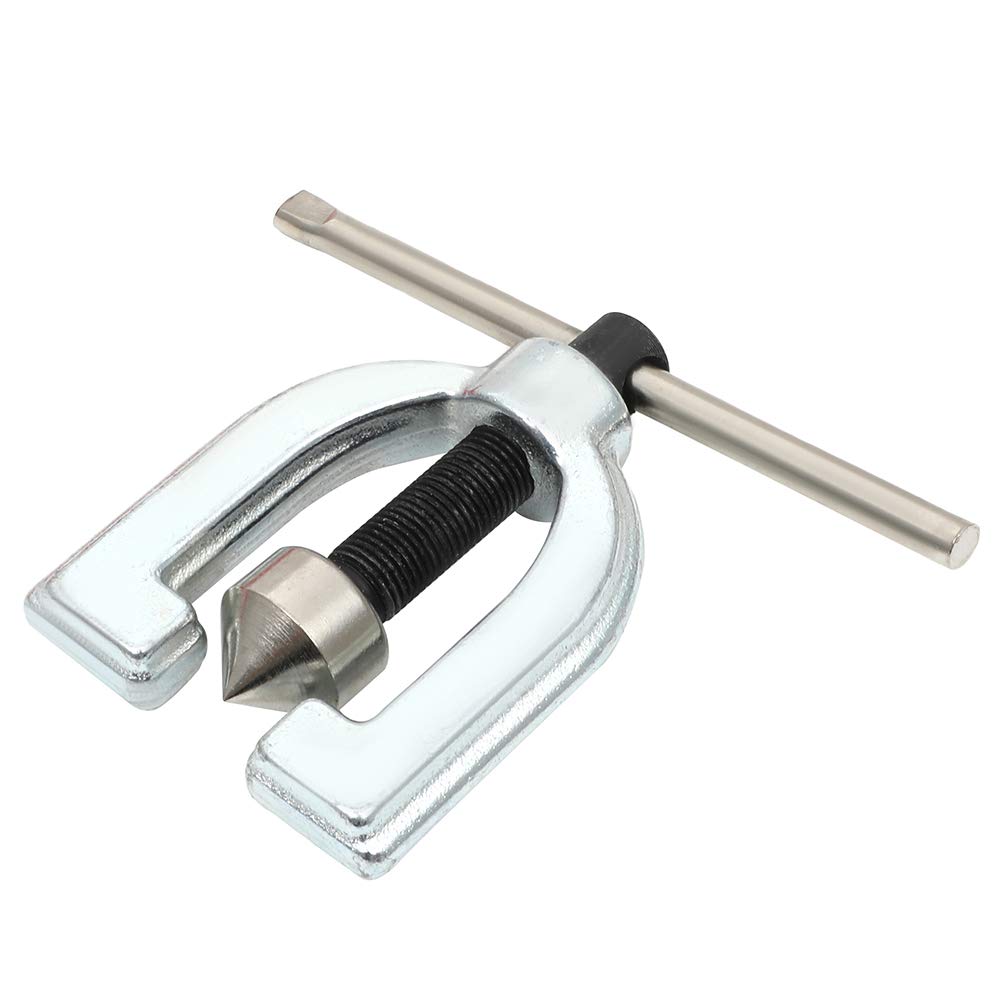

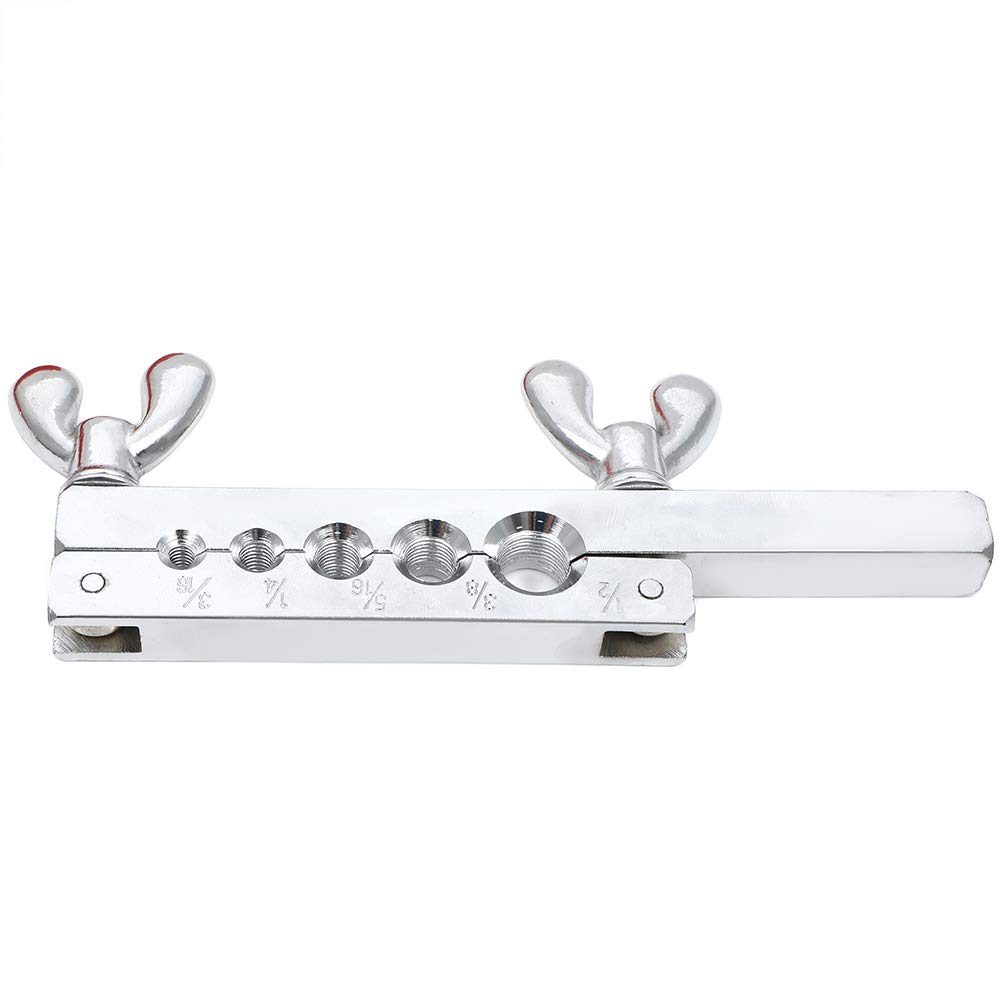

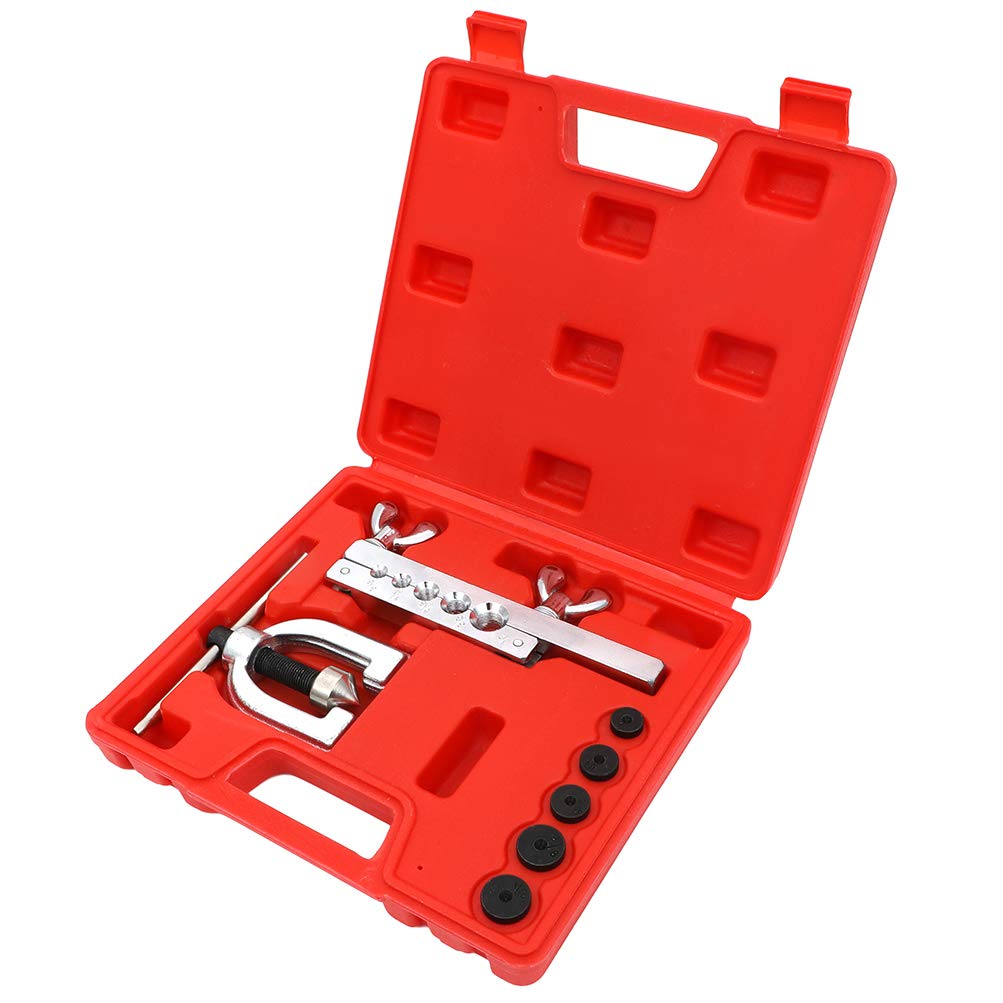

【COMPATIBLE PIPE SIZE】 Including 1 flaring cone,1 flaring yoke and 5 adapters 3/16, 1/4, 5/16, 3/8 and 1/2 inch (4.8, 6.4, 7.9, 9.5, and 12.7 mm).
【INSTRUCTION】 When flaring, first cover the annealed copper tube with the connecting nut, and then put the copper tube into the corresponding hole diameter of the pipe clamp. Tighten the nuts at both ends of the pipe clamp, press the conical head of the expanding ejector on the pipe orifice, and slowly rotate the screw clockwise to extrude the pipe orifice into a bell mouth.

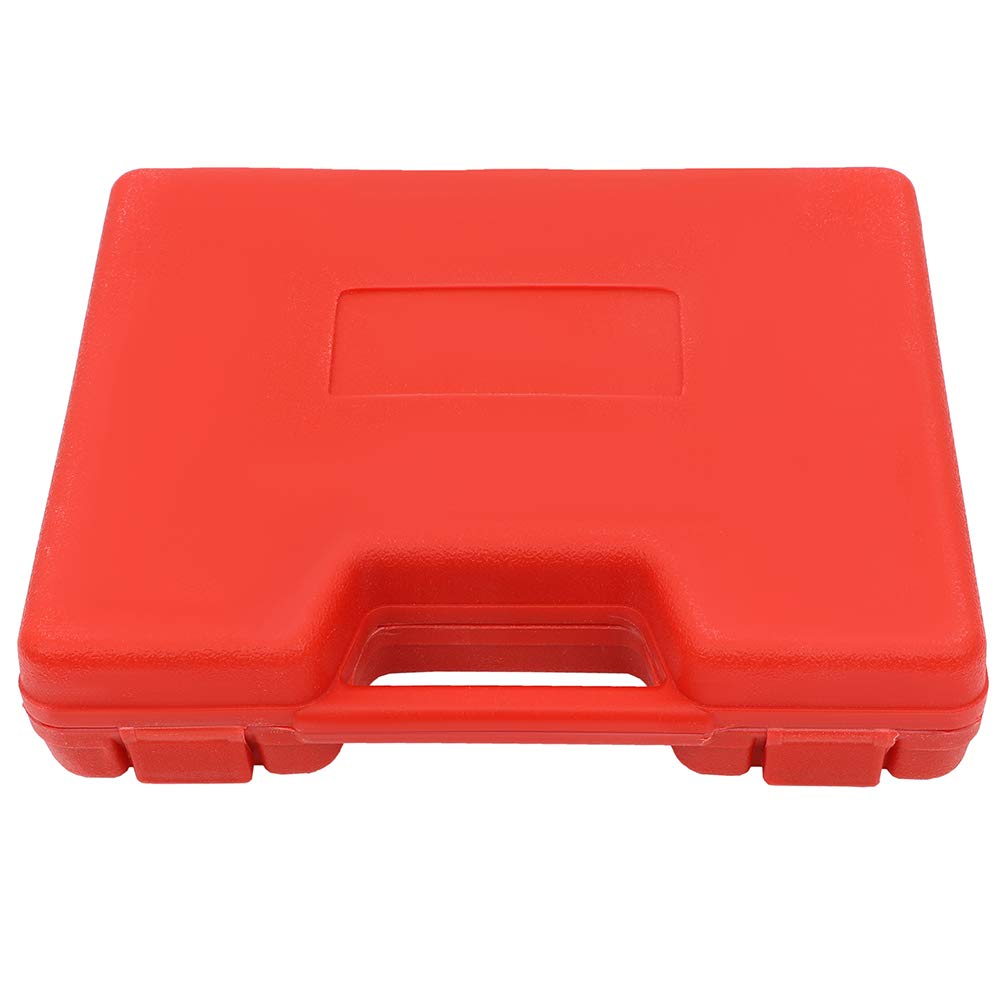

【FEATURE】 Fixed by twin studs for good clamping effect, small deformation of copper tube, construct from high quality steel for high durability and long service life. Blow molded hard plastic storage case keeps tools easy transportation and portability. Suitable for professional mechanic and personal use.
【1 YEAR WARRANTY】 1 year warranty for the product. If you have any questions, please feel free to contact us.
